SRH-805S SMA-F Female Dual Band Antenna 10W High Gain VHF/UHF for Handheld Radios - 2601

The SRH-805S SMA-F Female Antenna is a compact, high-performance dual-band antenna designed to significantly improve signal reception and transmission for handheld VHF/UHF radios. Operating across VHF 136–174MHz and UHF 400–470MHz, this antenna delivers high gain performance in a small, lightweight form factor.

With a maximum power handling of 10 watts, low VSWR (<1.5), and 50-ohm impedance, the SRH-805S ensures stable communication, clearer audio, and improved range compared to standard stock antennas. Its SMA-Female connector makes it perfectly compatible with popular Baofeng and other amateur (ham) radios.

At just 5cm long, it is ideal for users who need portability without sacrificing performance—perfect for daily use, outdoor activities, emergency communication, security work, and amateur radio operators.

Key Features

• Dual Band Operation – Supports VHF & UHF frequencies

• High Gain Performance – 2.15 dBi (VHF) / 3.0 dBi (UHF)

• Compact & Lightweight – Only 5cm length

• Up to 10W Power Handling – Reliable and efficient transmission

• Low VSWR (<1.5) – Stable signal with minimal loss

• SMA-Female Connector – Direct fit for many handheld radios

• Durable Construction – Designed for long-term use

Technical Specifications

• Model: SRH-805S

• Frequency Range:

  • VHF: 136–174 MHz

  • UHF: 400–470 MHz

• Gain: 2.15 dBi (VHF) / 3.0 dBi (UHF)

• Max Power: 10 Watts

• VSWR: < 1.5

• Impedance: 50 Ohm

• Connector Type: SMA-Female

• Length: Approx. 5 cm (1.97 inches)

Compatibility

✔ Baofeng Radios

• BF-666S

• BF-777S

• BF-888S

• UV-5R / UV-5RA / UV-5RB / UV-5RC / UV-5RD / UV-5RE / UV-5RE Plus

• UV-82

• UV-9R

• UV-3R

• BF-UVB5

✔ Kenwood

• TK-3107

• TK-3207

• TK-3217

✔ Wouxun

• KG-669

• KG-689

• KG-TG-UVD1P

✔ Quansheng

• TG-UV2

• TG-UV2 Plus

• TG-K10AT

• UV-R50

✔ Puxing

• PX-777

• PX-728

• PX-888

• PX-888K

✔ WEIERWEI

• VEV-3288S

• VEV-3288D

Applications

• Amateur (Ham) radio communication

• Security and patrol use

• Outdoor activities (hiking, camping)

• Emergency and backup communication

• Daily replacement or upgrade antenna

Package Includes

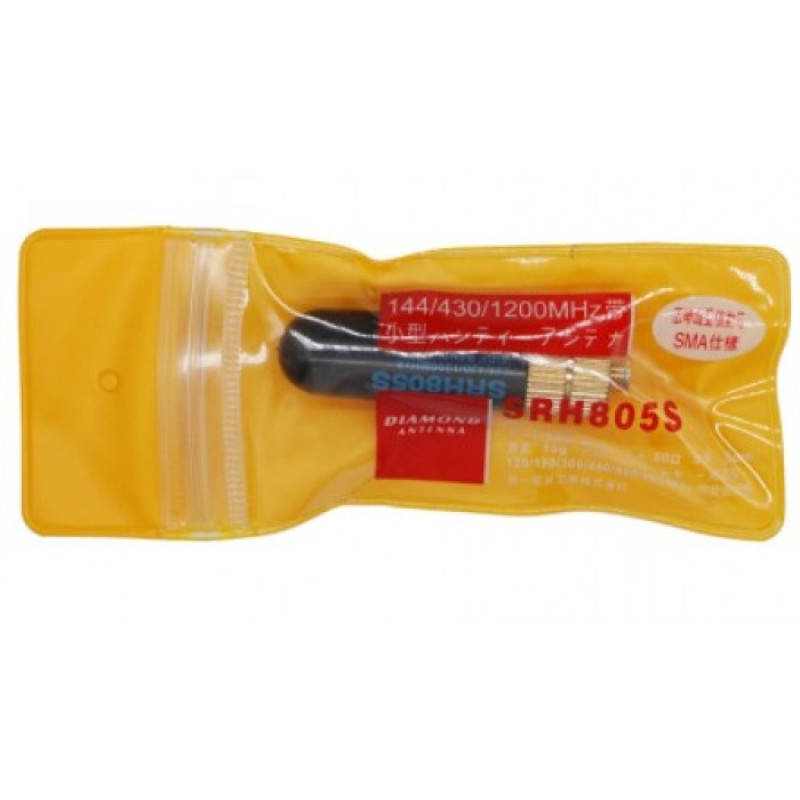

• 1 × SRH-805S Dual Band Antenna

Note: Radio device is not included.
